Wooden Carport 28m2 with Habrita Roof

Wooden carport 28m2 with Habrita roof.

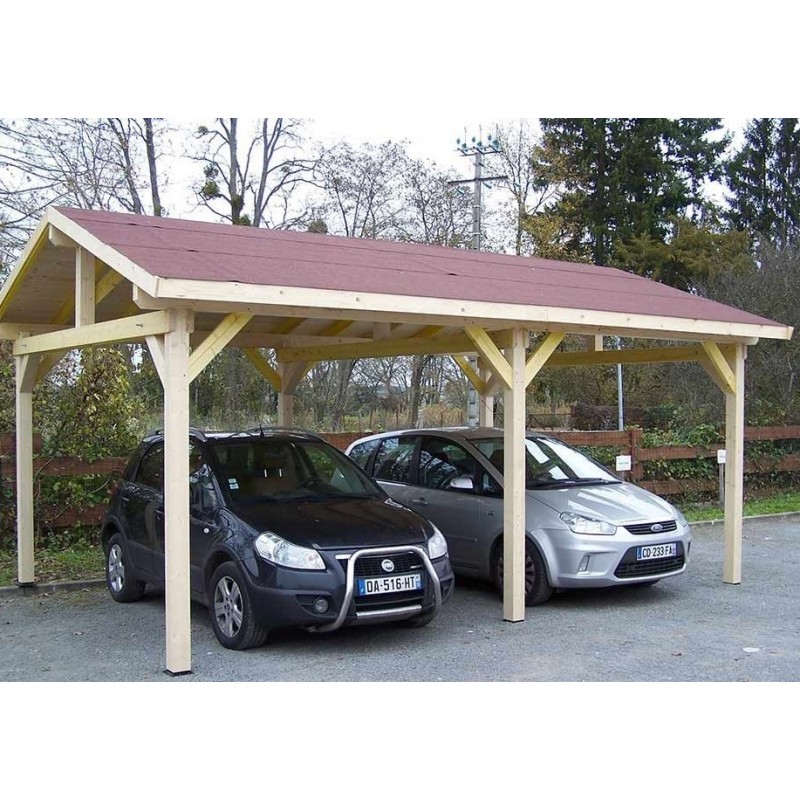

Solid wood carport 12 x 12 cm section, with roof covered with asphalt shingles is ideal for a covered garage of 2 cars, bicycles and motorcycles.
The carport is an economical product that will serve you for the protection of your vehicles.
The wood received a colourless CTBP+ insecticide and fungicide treatment.

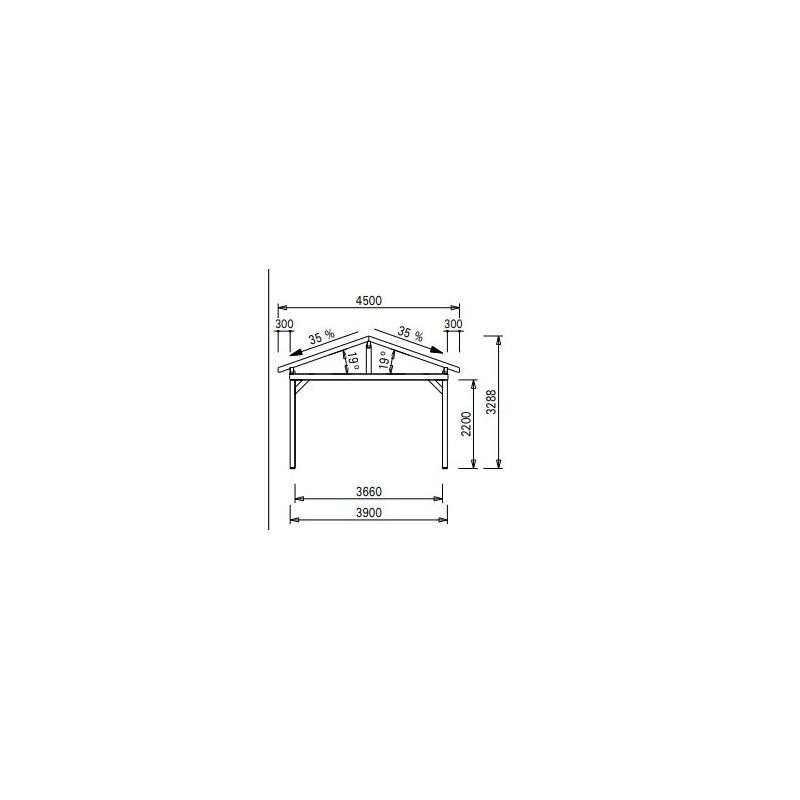

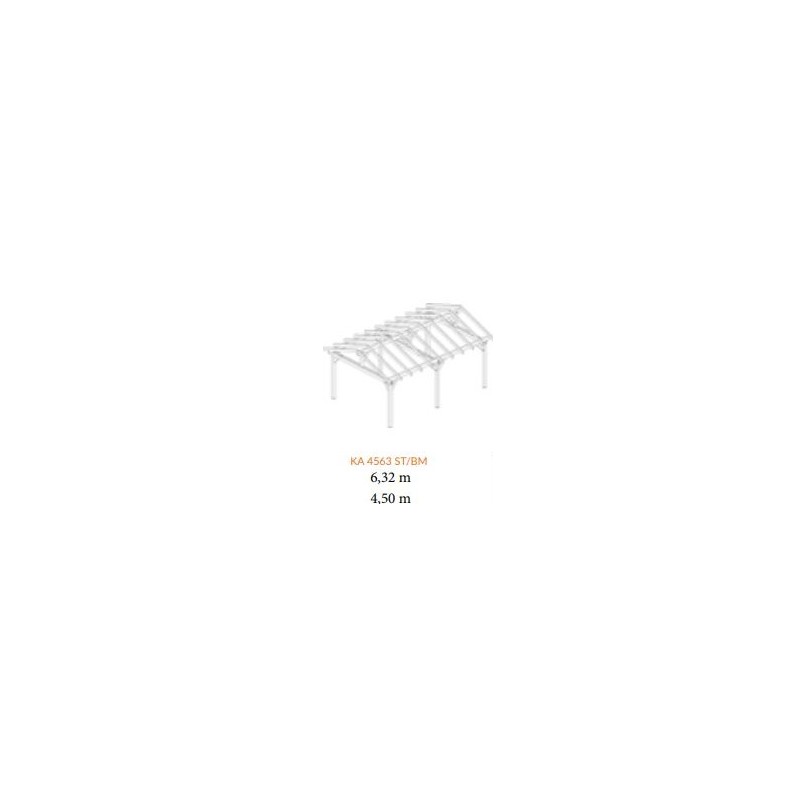

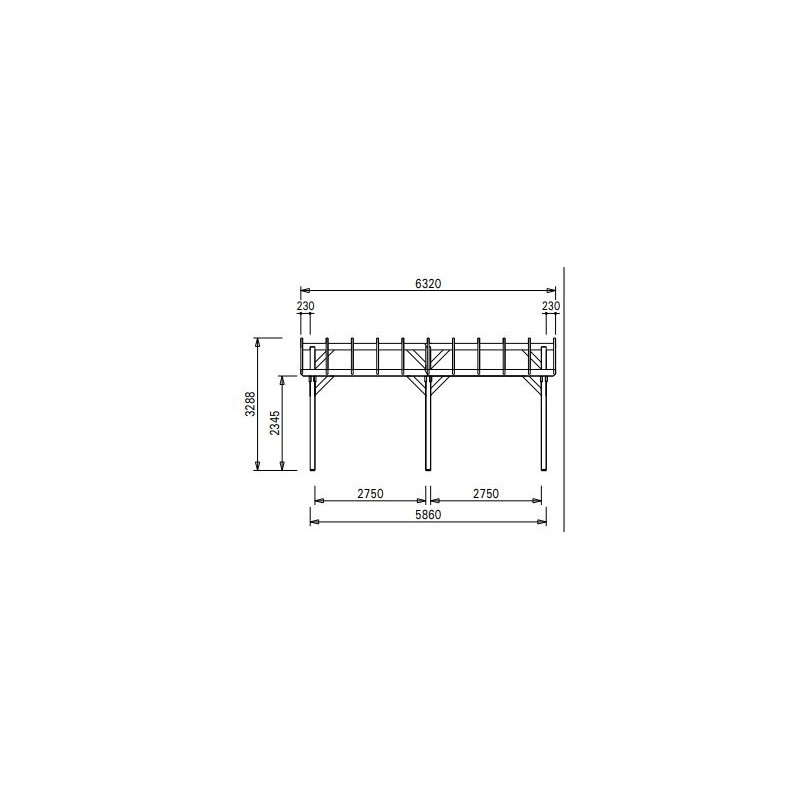

The Carport measures 6.32 m in length, 4.50 m in width and 3.29 m in height (overall dimensions) or 28.44 m². The double slope roof has an inclination of 19°. The floor dimension is 586 x 390 cm with a passage height of 2.20 m and a passage width of 3.66 m.

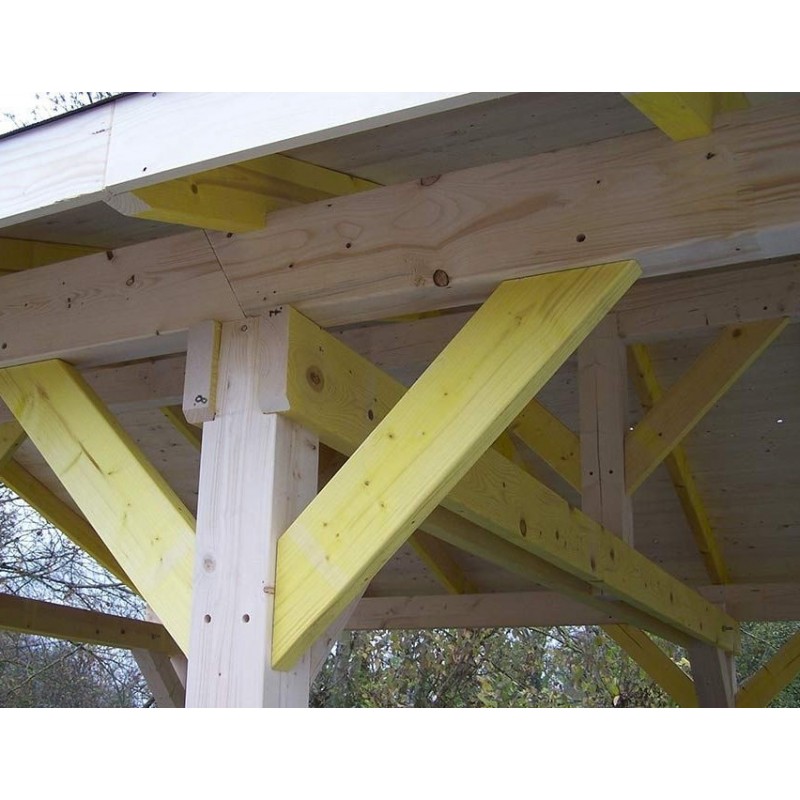

The 6 poles of the Carport are made of laminated northern spruce. They are planed on all 4 sides and chamfered. The maximum humidity level is 15% and they have a section of 12 x 12 cm. The parts come with metal plates that allow the Carport to be fixed on a hard floor.

This Carport is equipped with the following elements:
- structural wood breakdowns with a section of 80 x 160 mm.
- sprockets with molded in-between of 145 x 45 mm of section.
- Solid wood rafters of 120 x 45 mm

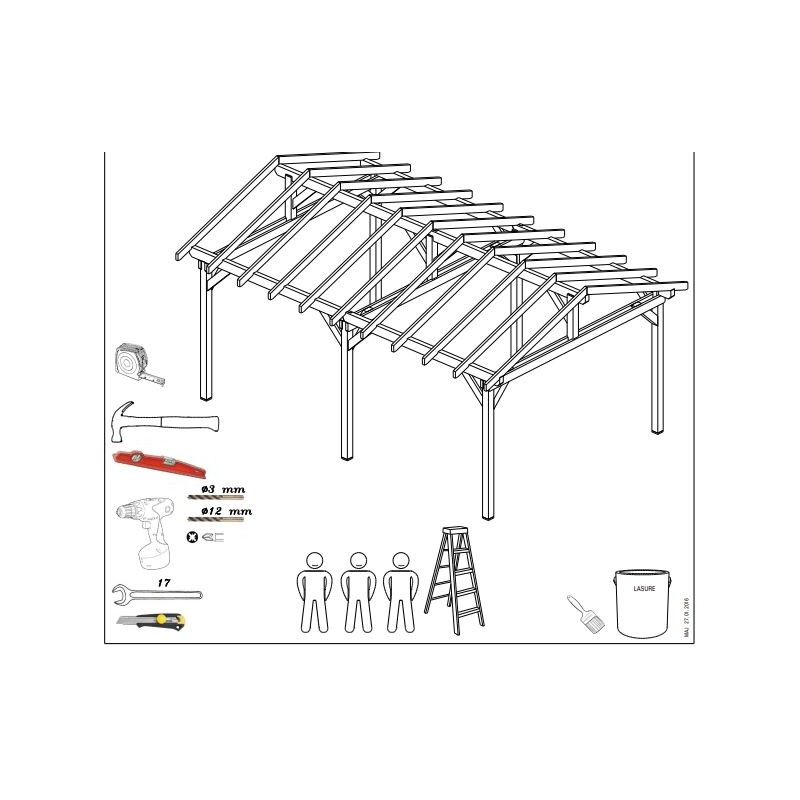

The Carport comes as a self-assembled kit. The assembly is carried out with spins and with studs and mortises. Detailed assembly instructions are provided for detailed installation.

If you do not want to carry out the installation yourself, you can choose the assembly service. In this case, a team of professional fitters move around and install the Carport directly in your grounds. The concrete slab must be made before the arrival of the assembly team. In case of delivery + assembly, the delivery time increases to an additional 2-4 weeks. The Carport is guaranteed for 2 years.

Learn more:
. Carport autoclave economical flat roof - Product treated autoclave for a long life- Very good value for money for garage covered car- Section pole 9x9 cm- Product made in EUROPE- PRODUCT FSC
. Warranty: 10 years against a deformation of the structure (and not on the finish) 2 years on the cover

Technical details
• Material: Northern Spruce
• Post section: 12x12 cm
• External dimensions: 452x632cm
• Exterior surface overall: 28.44m²
• Passage: 2 cars
• Useful area : 22.85m2
• Height of the gutters: 220cm
• Wall height: 2.40m
. Width Passage 366cm
• Colors: natural wood and asphalt shingle roof
• Packaging dimensions: 400 x 120 x 50 cm
• To be installed on a concrete slab,
• Maintenance: Without specific maintenance
• Warranty: 2 years

Assembly.

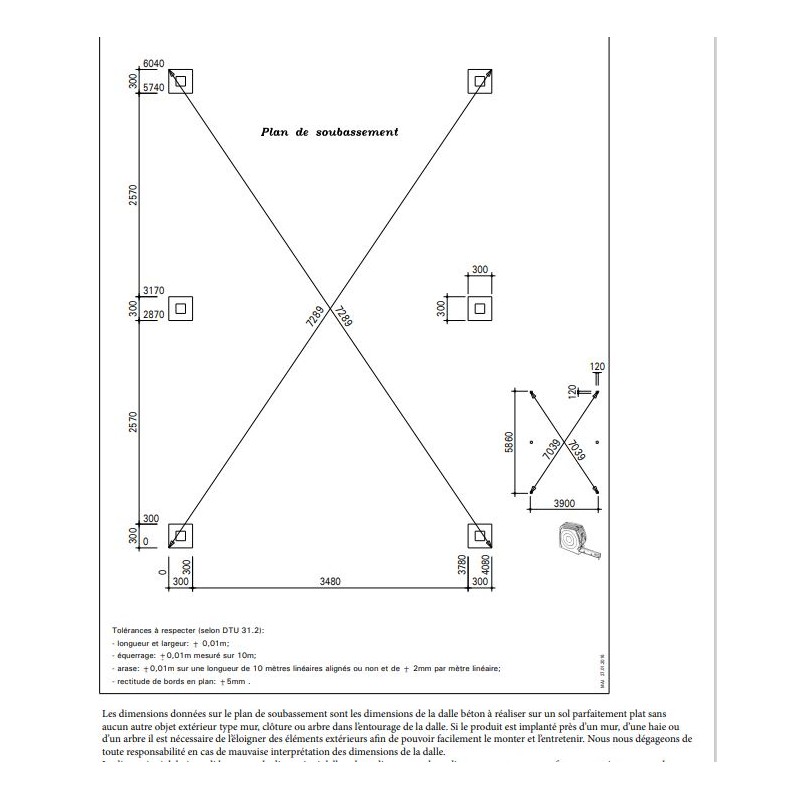

You need to mount your shelter on a flat, stable and durable foundation, and never directly on dirt or lawn.
Shelters >4.9m2 must be mounted on a concrete slab
Your concrete slab should be 10 cm thick and 3 to 5 cm on the periphery of the shelter.
So to get your foundation size: add 3 to 5 cm to the external dimensions walls shelter.
Once the shelter is built, it must be anchored to the foundation.
Number of people needed: 4 people
Type of foundation = concrete slab.
Foundation size = 400x50x 120cm.
Brand: Habrita
Weight: 1230kg (50 x 400 x 120 cm)
Certifications: FSC
Delivery: 4 to 6 weeks
To be installed on a concrete slab obligatorily and wood screws provided.
The concrete slab should be 10 cm thick and 3-5 cm on the periphery of the shelter.
Do not mount your garden shed directly on lawn or soil. Maintenance: apply a saturator or wood oil to preserve the interior and exterior color immediately after assembly.
