Heat pump Heatermax Inverter Ubbink for Pool 40m3

Heat pump Heatermax Ubbink Inverter 40 for Swimming pool up to 40 m3.
The Heatermax Inverter 40 Heat Pump for Swimming Pool is dedicated to pools up to 40m3 for wooden, tubular, self-supporting, steel-walled pools.
This heat pump Heatermax Inverter 40 of Ubbink is suitable for heating the water of a basin of 40 m3 maximum. Silent, economical and ecological, it has a reversible mode with automatic defrosting to cool the water of your pool.
This pump is suitable for any type of water treatment (chlorine, salt electrolysis). Protective tarpaulin included.
This heater is a valuable ally in order to obtain an optimal water temperature. Whether you want to warm your pool water or refrigerate it, the Pump Heatermax Inverter 40 adapts to each type of situation for a basin with a maximum surface area of 40 m3. The heat pump is installed with an H07RN-F 3*2.5mm2 power cable (not included). The connection of the heat pump is done with a PVC pipe in 50 mm.
It is advisable to install this heater in bypass by means of a By-Pass. This bypass has the advantage of regulating the flow of water passing through the pump in order to optimize its operation. The By-Pass also aims to isolate the equipment from the hydraulic circuit while maintaining filtration. To operate the Heat Pump properly, the air temperature must be between 7°C and 43°C and that of the water between 6°C and 41°C.

Benefits:
The pool heat pump will heat the pool water not exceeding a volume of 40 m3. Its Inverter function allows this device to also cool the water in a pool if it is too hot. Depending on the climatic conditions, the performance of the CAP is as follows:

For an air temperature of 28 °C – Water 28 °C – Humidity 80%:
The heating power is 9.5 – 3.6 kW
Power consumption is 1.67 – 0.42 kW
The coefficient of performance (COP) is 8.6 – 5.7

For an air temperature of 15 °C – Water 26 °C – Humidity 70%:
The heating power is 6.8 – 2.5 kW
Power consumption is 1.62 – 0.45 kW
The coefficient of performance (COP) is 5.6 – 4.2

The shell of the Heatermax Inverter 40 Heat Pump is made of galvanized stainless steel thus making it protected from any possible corrosion.
The heat exchanger has a titanium tube that is ideal for chlorinated or salt pond water.
The high-quality Mitsubishi rotary compressor added to a horizontally operating fan make this Heat Pump a quiet and discreet device (43 decibels) while respecting sufficient ventilation space.
The Heat Pump has rubber anti-vibration pads with the aim of reducing movement during its operation.

The gas heat pump R32 is more efficient and more environmentally friendly. Compared to the old fluids used (R410A), the refrigerant gas R32 used in the Heatermax Inverter 40 pump offers many advantages. Environmentally friendly, R32 fluid has no impact on the ozone layer due to its easily recyclable pure constitution. R32 refrigerant gas provides better performance and heating capacity (+ 5 to 10%), being much more economical. The use of R32 gas allows a 37% reduction in the refrigerant load in heat pumps. In addition, the cost of this fluid is lower than its predecessor, which makes it a very good alternative.

The Heat Pump Heatermax inverter 40 comes with:
- A protective tarpaulin for the winter
- 4 anti-vibration pads

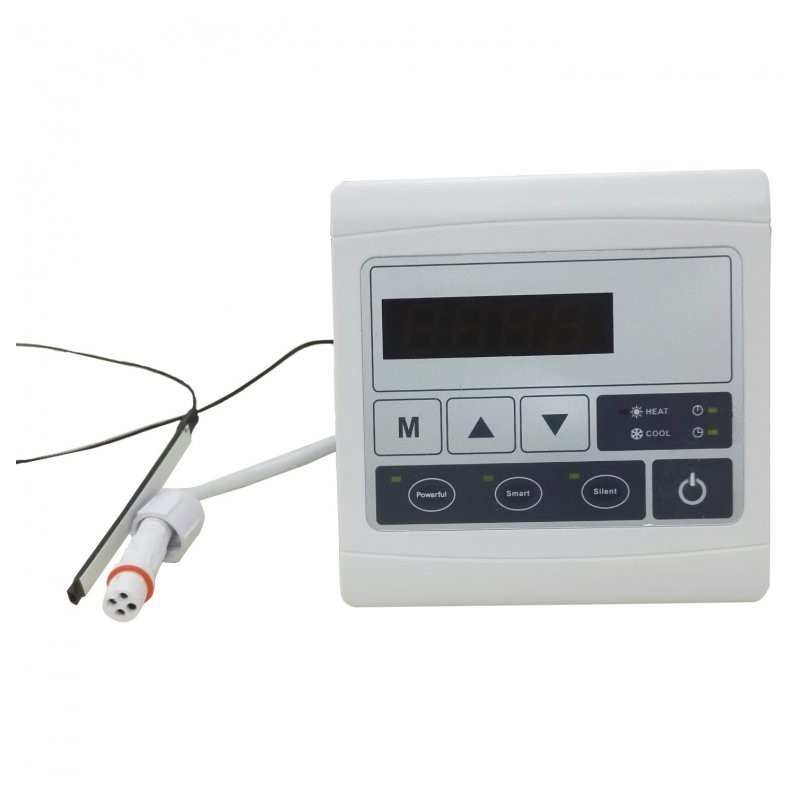

- 1 extension of 10 m for connection to the LED screen
- 2 kits to connect to the water supply 50 mm
- 2 pipes for condensation water
- 2 supports for pipe

Guarantees:
-Heat pump guaranteed 2 years
-Compressor guaranteed 5 years
-Titanium coil guaranteed 15 years against corrosion

Specifications:
Model :Heatermax Inverter 40
Volume of the basin (m3) : 40m3
Air 15°C / Water 26°C / Hydro 70%
Capacity (W) : 5.6kW
Power consumption (W) : 2.5
COP : 5.6
Power supply: Mono 220V-240V/50Hz
Heating temperature range: 15°C / 35°C
Operating range: 7°C / 43°C
Fuse: 11A
Power Cable: 2.5m with DDR Residual Differential Device
Protection Type:IP X4class 1
Countable salt treatment: yes
Flow rate (m3/h) : 2.9
Refrigerant: R32
Fan direction: Horizontal
Dimensions (mm): 360 x 551 x 969
Net weight / Gross (kg) : 53
Noise at 1 m(dB(A)): <43
Noise at 10 m(dB(A)): 45
Compressor type: Single rotary
Compressor brand: Mitsubishi
Exchanger: Twisted Tech Titanium
Function: Heating

Brand: Ubbink
Ubbink designs and manufactures a wide range of pool heat pumps. With a very high reputation among its customers, Ubbink is today the most recognized brand of heat pump.
Ubbink PACs offer a number of advantages: superior energy performance, quiet operation, excellent service life and a very advantageous quality/price ratio.
In addition, the design and after-sales service are located in France.
We are the official distributor of the Ubbink brand.
