Pool Wood Sunwater 490x300 H120cm Blue Liner Ubbink

Pool Wood Ubbink Sunwater 490x300 H120cm Blue liner.
Wooden pool Ubbink Sunwater 490 x 300 cm - Octagonal wooden pool kit. Delivered as a complete kit including structure, filtration and accessories.

Ubbink, swimming pool manufacturer since 1970
By choosing a product from the Ubbink brand, you are investing sustainably in a space of well-being, conviviality and happiness for your garden. All above-ground wooden pools are designed with robust and quality materials, designed to meet the needs of young and old, able to withstand time, bad weather and the great moments of life.
Particularly anxious to accompany pool holders at every stage, Ubbink offers a range of ancillary services including assembly assistance, comprehensive warranties and a responsive and efficient after-sales service.

As a privileged partner of the brand, we ensure sustainable availability of products, accessories and spare parts; A constant maintenance of delivery times even in the middle of summer as well as a perfect knowledge of the products and their specificities to advise you at best.
This ensures that you are speaking with a qualified and competent professional.

Presentation of the octagonal Ubbink Sunwater pool 490 x 300 cm
The Sunwater range offers models with dimensions specially designed to allow the whole family to dive, swim or splash around without constraints. Easy to install with perfect dimensions to fully enjoy. Available in different sizes and heights, the Sunwater range offers two swimming pools that will delight swimmers and athletes.
You will undoubtedly find the model best suited to your needs and those of the whole family in the Sunwater range.

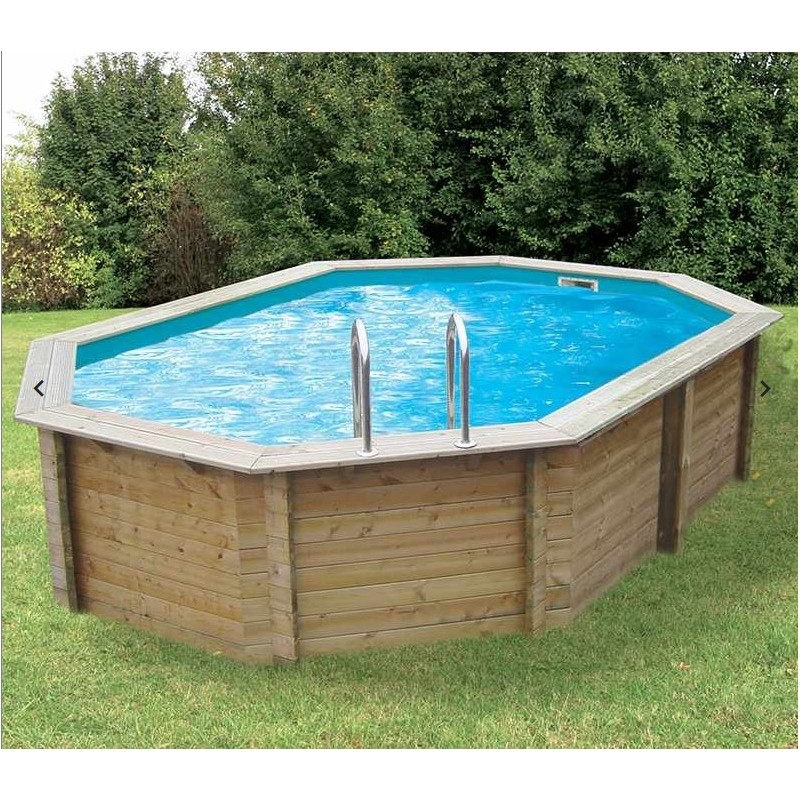

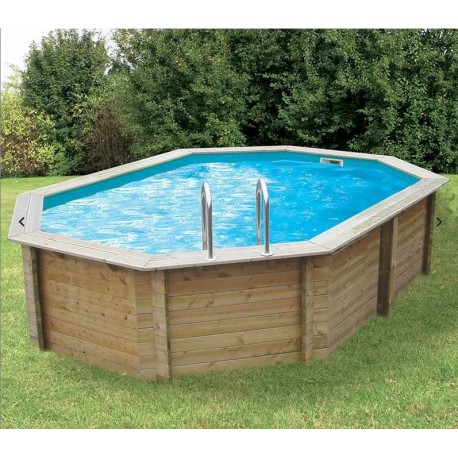

The model Sunwater 490 x 300 cm Octagonal is one of the flagship models of this range with a swimming surface of 8 m². Delivered in a complete kit including structure, liner and filtration, it is ready to be installed. With a height of 140 cm, the Sunwater wooden pool is perfect for young and old to swim without risk under the supervision of an adult.
There are 3 ways to install your wooden pool: Above ground, semi-buried or buried. The choice depends on the inclination and hardness of the terrain, your earthmoving possibilities.

Characteristics: Octagonal Sunwater.
Size:
External dimensions: 490 x 300 cm
Internal dimensions: 440 x 250 cm
Dimensions concrete slab :515 x 325 x H 20 cm (26.2m2)
Height: 120 cm
Useful water height: 105 cm
Water volume: 16.4 m3
Swimming area : 10.8 m²
Unit weight: 1200 kg

Equipment and materials:
Pine structure from northern European forests (FSC)
Wood treated with autoclave treatment class IV
Thickness planks: 45 mm

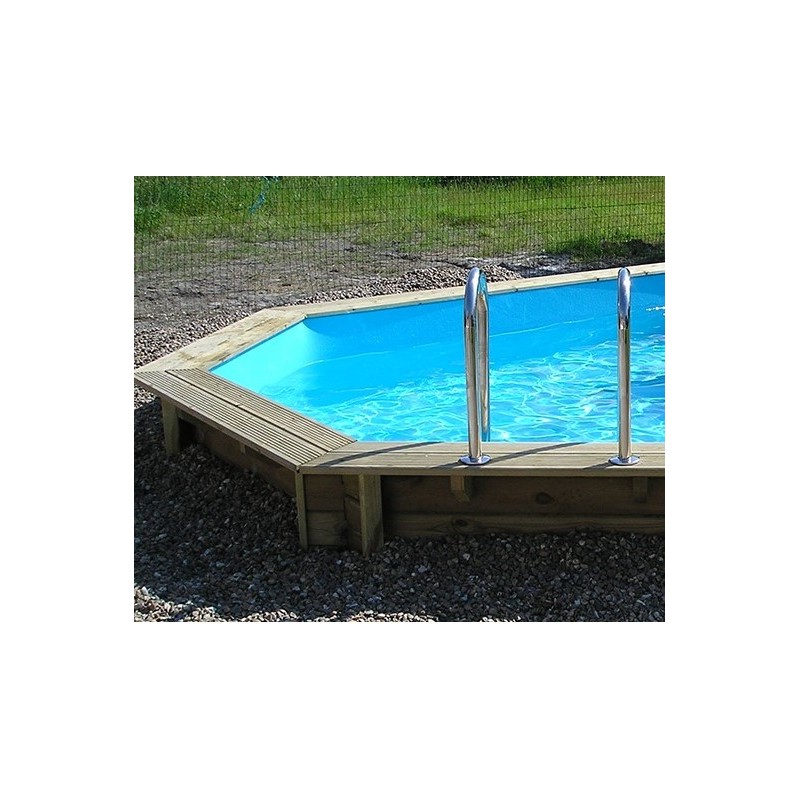

Double Margelle Northern Fir, 27 mm
Flexible hose: D 38 mm x 12 m

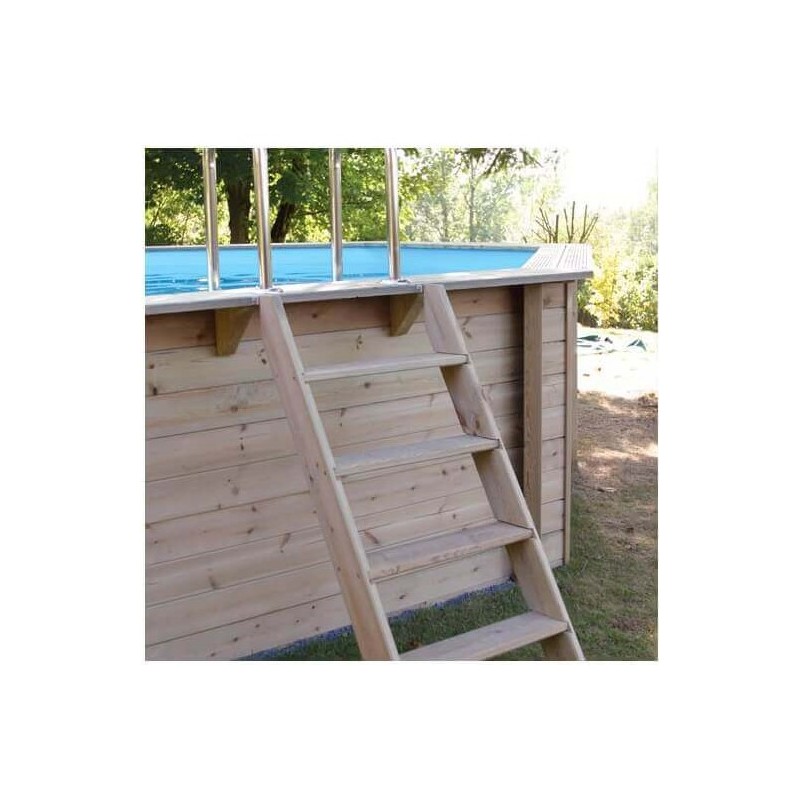

Outdoor wooden ladder 4 steps (removable, child safe)
Stainless steel interior ladder 3 steps
Liner 75/100 th solid color Blue
Antibacterial background felt 200g/m²

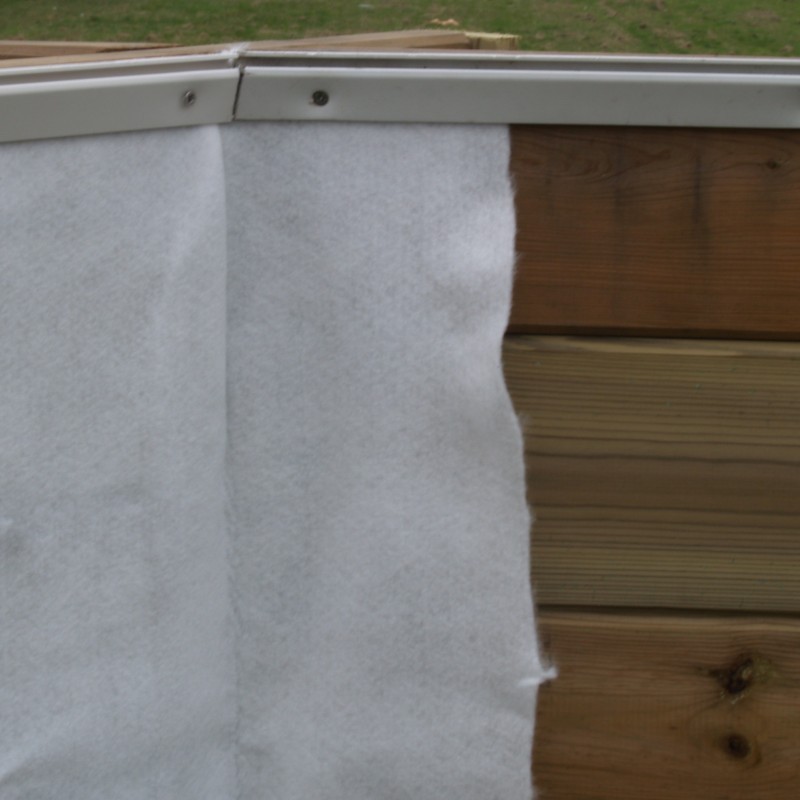

Wall felt 170g/m²

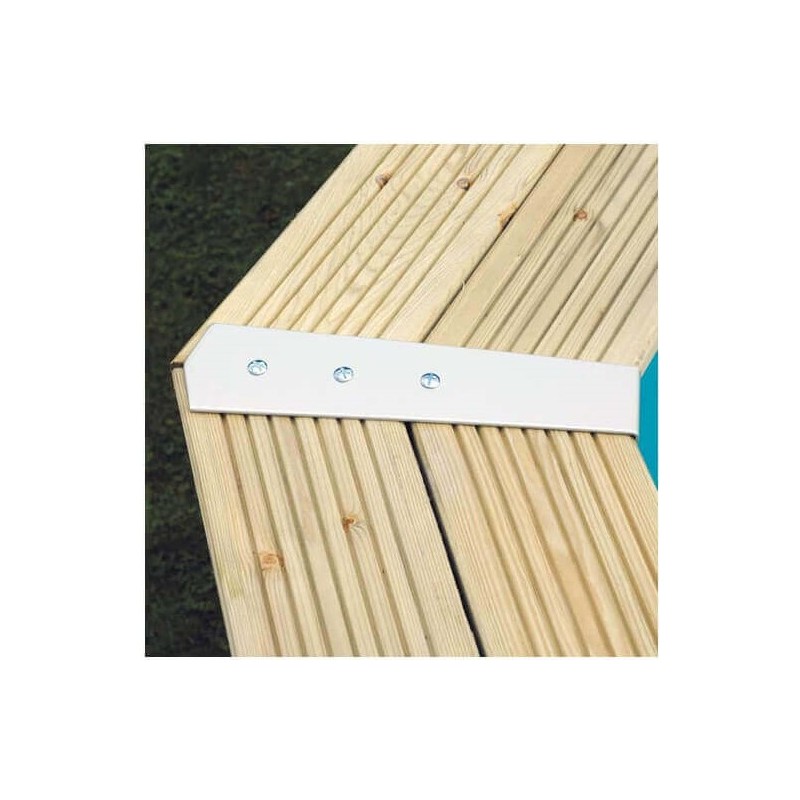

Corner anodized aluminum finish for curbs
Anodized aluminum finish for curbs
Stainless steel screws.

Technical data:

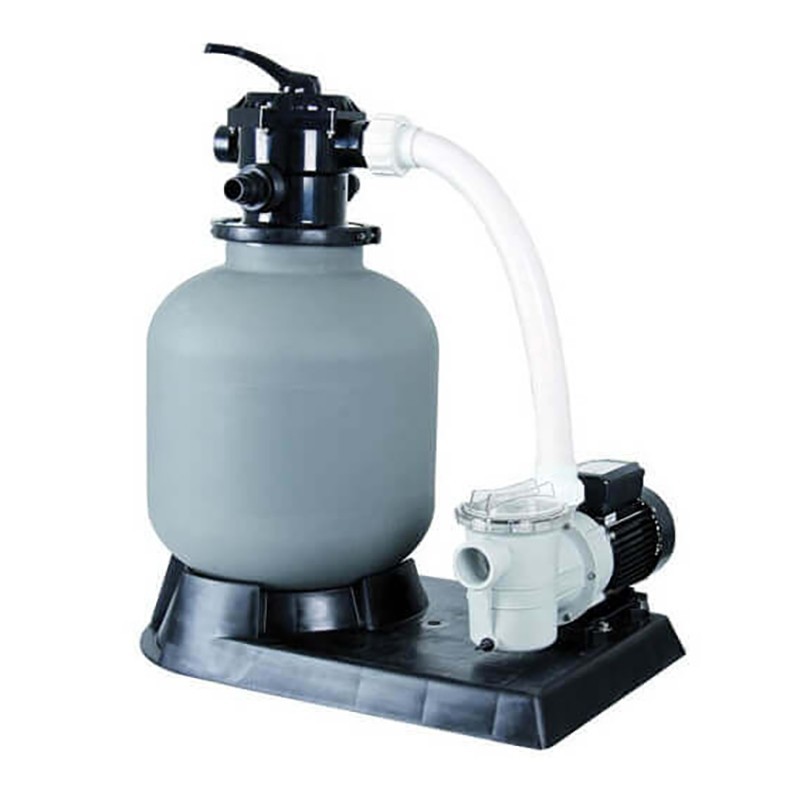

Filter diameter: Ø 400 m (19")
Filter flow: max. 6 m3/h
System pressure: max. 3.5 bar
Silica filter sand supplied - 0.40 – 1.25 mm

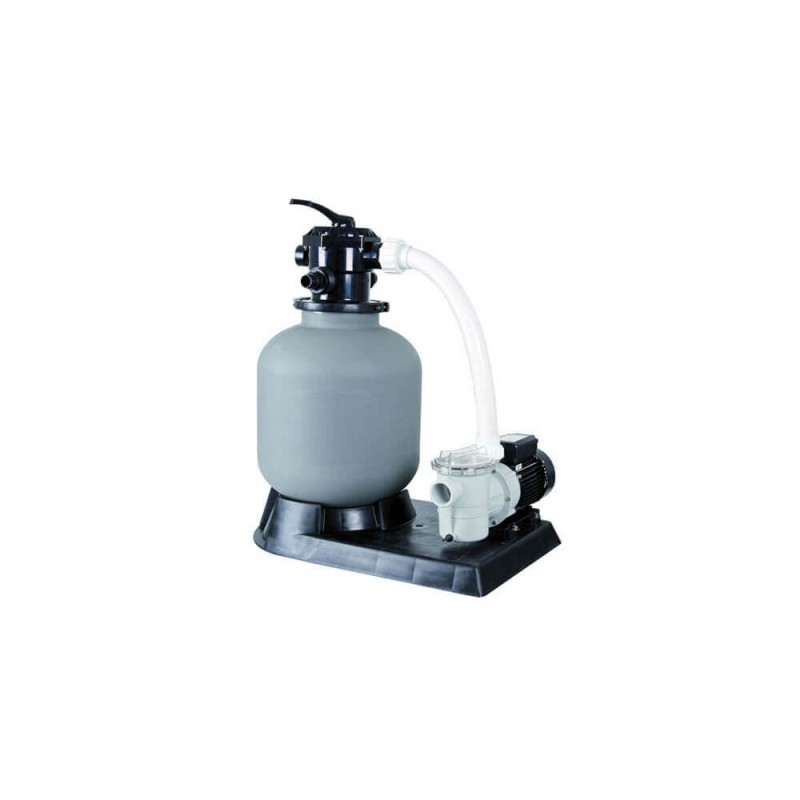

Poolmax TP50 filtration pump
Nominal voltage/frequency: 230 VAC / 50 HZ
Rated power : 0.50 HP / 0.37 kW
Filtration unit flow rate 6.0 m3/h
Plug with 10mA Short Circuit Protection (DDR), IP54
Warranty of the wood frame: 15 years against rotting and insect attacks.
2-year warranties: Filtration and accessories.
10-year warranties: Liner 0.75mm
Products compliant with FR and EN standards.

Products compliant with NF P90-316 / NF P90-317 / NF P90-318 standards (tests carried out by Laboratoires Pourquery de Lyon, France)
Products compliant with standard NF P90-319 (tests carried out by IFTS, Institute of Filtration and Separative Techniques, Foulayronnes, France).
FSC® is an independent forest certification programme which, in addition to environmental aspects, also focuses on fair economic and people-to-people exchanges. "Control Union" has certified UBBINK® according to FSC criteria, under the reference CU-COC-820704®.

Installation recommendations:
It is essential to define the location of your pool taking into account the exposure and quality of the soil. You will have to take care not to install the pool on unstabilized or recently backfilled floor. The manufacturer also advises you to make a concrete slab having previously leveled the land.
In case of sloping terrain, it is imperative to disburse it to level it. Do not backfill your land to level it up.

CAUTION: Install a high-density polyethylene growth sheet (not supplied) on the outer wall to drain rainwater. The height of the film must correspond to the level of the embankment. Without the presence of a draining tablecloth, the 15-year warranty covering the wooden structure may not be maintained by the manufacturer.

Assembly assistance and technical questions:
For further information or assistance during assembly, an assistance service is available from Monday to Saturday, from 9am to 6pm. The number will be communicated to you upon receipt of the order.
To ensure a simple and serene delivery, the carrier service will contact you to arrange an appointment according to your availability. On the day of delivery, the delivery person arrives with a truck to deposit the pool as close as possible to his place of installation.
If your home is difficult to access, do not hesitate to check in with our advisors to find the best delivery option. The seller can not be held responsible in case of inaccessibility of the home.

The delivery rate indicated is valid only for metropolitan France (excluding Corsica and islands).
We deliver on request to all destinations in Europe and Switzerland (delivery rate on request depending on your geographical area).
